Primary Air Fan Overhaul
  • Primary Air Fan (PAF)

PLTU 1 Jatim Pacitan memiliki 2 set PA Fan dengan kapasitas 2×50 %. PA Fan berfungsi sebagai penghasil udara primer (Primary Air) yang digunakan sebagai udara pengangkut serbuk batubara dari Pulverizer/Mill menuju Burner untuk dibakar di furnace. Adapun spesifikasi teknis dari PA Fan seperti ditunjukkan oleh Tabel 2.4 di bawah ini.

Type SFG21F-C5A
Chnical parameters
Type Single suction, double support centrifugal type
Inlet air direction (90°right)
Outlet air direction (45°turns right)
Impeller diameter   2100mm
Impeller max. peripheral speed 160m/s
Rotor critical speed : 2024r/min
Impeller weight : 1609kg
Rotors weight : 3920kg
Total weight : 13133kg
Designed parameter
Full fan pressure : Pa 17180
Inlet temperature : 30℃
Inlet air density : 1.222 kg/m3
Inlet flow : 74.36 m3/s
Efficiency of full fan pressure : 86 %
Air fan shaft power : 1463 KW
Motor power : 1700 KW
Air heater
LAP10320/2200 type tri-sector Junker air heater is a regenerative heat exchanger running by convection flow.

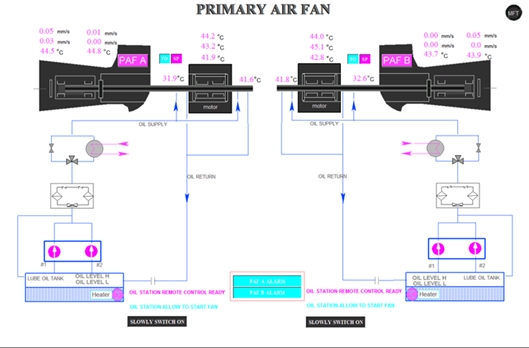

Gambar 3.10 Diagram Blok Primary Air Fan
